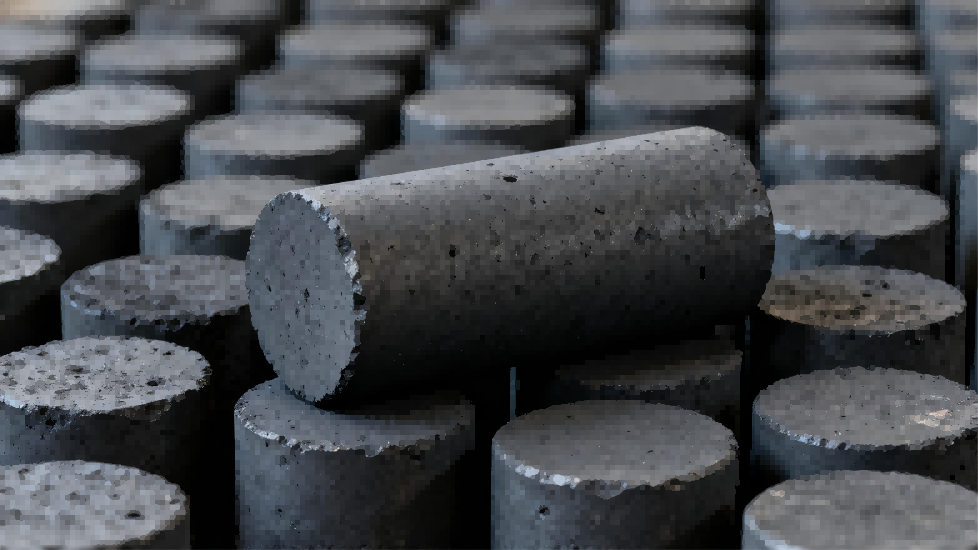

Products: Electrode Paste

GET A QUOTE

Item	CP-1	CP-2	CP-3	CP-4	CP-5
Ash content % (max)	3	4	5	6	6
V.M%	9.5-15.5	9.5-15.5	9.5-15.5	11.5-15.5	11.5-15.5
Volume Density g/cm3 (min)	1.43	1.43	1.43	1.43	1.43
Compressive Strength MPa (min)	18	17	22	21	20
Specific Resistance µΩ·m (max)	65	75	80	85	90
Elongation %	5~20	5~20	5~30	15~40	15~40

Main features and performance:

Low resistance coefficient: Reduces energy loss.

Good conductivity: Can effectively transfer current to the furnace and generate an electric arc for smelting.

High mechanical strength:It is unlikely to break due to mechanical or electrical loads.

High temperature resistance and oxidation resistance： Can withstand high-temperature electric arcs and has a slow oxidation rate， ensuring that the electrode operates normally at high temperatures.

Low porosity： Slows down the oxidation rate of the electrode during heating.

Low ash content： Fewer impurities during the production process.

Raw Materials and Manufacturing

Main raw materials: Include calcined petroleum coke or asphalt coke, calcined anthracite, coal tar pitch, and other adhesives.

Manufacturing process: Prepared according to a certain formula and process at a specific temperature.

Formula: Depending on different furnace types and customer requirements, standard electrode paste or electrode paste with higher conductivity, thermal conductivity, and sintering performance can be produced.

Related Products

Product: Calcined Petroleum Coke

Our company currently has two calcining furnaces dedicated to the petroleum coke processing for electrode paste products. To ensure the quality of raw materials, we purchase low-sulfur green petroleum coke, which is processed in the calcining furnaces at a temperature of approximately 1300°C, resulting in a carbon content of about 98.5%. This processed petroleum coke is used as a carbon additive in the metallurgical industry.

products-graphitizedpetroleumcoke-gpc

Can be used to produce high qual- ity steel,castiron,alloys and other materials.

products-metallurgocalcoke-Metcoke

Ageneral termforcoke used iniron smelting,smeltingferroalloys,andno- nferrousmetals.Itincludesblastfurna cecoke,foundrycoke,andferroalloyc- oke.

Main Products: Electrode Paste

Our electrode paste is supplied to over 50 manufacturers across the country, and is used in more than 100 submerged arc furnaces. Among these, the representative furnace types include 81,000 KVA calcium carbide furnaces, 60,000 KVA ferrosilicon furnaces, and those with a capacity of over 25,500 KVA.

products-siliconcoal

Used in fields such as metallurgy and chemical engineering. materials.

products-Anthracitebasedcarbonadditive-CAC-GCA

Mainlyused in steelmaking and casting industry.

Products: Electrical Calcined Anthracite

Our company currently has two calcining furnaces dedicated to the anthracite pretreatment process for electrode paste products, with an annual capacity of 40,000 tons. Anthracite from Ningxia, China, features high fixed carbon content, high calorific value, low volatile matter, low ash content, and low sulfur content. Thanks to our favorable geographical location, we purchase local anthracite for processing, ensuring control over the source of raw materials and making the quality of electrode paste more excellent and stable.
